【Working Principles of Air Compressor】
The traditional air compressor uses maximum and minimum pressure inspection of the system to control the motor of the compressor. Its disadvantage is that, since its starting current is 6 to 8 times of the rated current, the electric grid and the mechanical load has to bear huge impact as the motor starts and the motor and the electromagnetic switch are likely to be burned. This is why the air compressor is in no-load operation for a long time as the pressure decreases.

Based on the principles of air compressor, we may understand that the air consumption of the users has been changed as the air compressing system operates. The motor of the compressor has been in the mode of operation. When compressing (the pressure of air storage tank rises from lower pressure to the set maximum of the system), the motor of the compressor operates with light load. The operation status of the compressor’s motor is adjusted by the gas admittance valve, exhaust valve and air escape valve of the air compressor.

[About TOP GIN] [TOP GIN Milestones] [Injection Molding Machine] [Chiller] [Pump] [Ceramic]
[Ventilation system] [Others]

1.Working Principles of Air Compressor
  • The traditional air compressor uses maximum and minimum pressure inspection of the system to control the motor of the compressor. Its disadvantage is that, since its starting current is 6 to 8 times of the rated current, the electric grid and the mechanical load has to bear huge impact as the motor starts and the motor and the electromagnetic switch are likely to be burned. This is why the air compressor is in no-load operation for a long time as the pressure decreases.

  • Based on the principles of air compressor, we may understand that the air consumption of the users has been changed as the air compressing system operates. The motor of the compressor has been in the mode of operation. When compressing (the pressure of air storage tank rises from lower pressure to the set maximum of the system), the motor of the compressor operates with light load. The operation status of the compressor’s motor is adjusted by the gas admittance valve, exhaust valve and air escape valve of the air compressor.
TOP GIN-Principles of Air Compressor
2.Feature
  • The air compressor which is widely applied on various industries serves as the main and stable power source and the key factor for smooth manufacturing process. The unstable air supply may affect the quality and precision of production. In response to the production agenda and the variation of pressure, an air compressor may reserve more storage amount for the changing demands of the production lines during its installation.
3.Analysis of Energy-saving Method
  • When the air consumption of the production line is smaller, the air compressor may operate in the load mode of partial control. The motor of the traditional screw air compressor usually operate in fixed frequency. The long-term partial load operation mode of an air compressor may result in poor operation of the system and waste of energy.
Traditional screw air compressor usually operated with fixed frequency. Its ways to control the gas emission are:
  1. Load and Unload: 8 to 22 percent of energy-saving benefits
  2. Inlet Valve (adjusting the air admission): About 30 percent of energy-saving benefits
  3. Frequency Control (Changing the motor’s revolution): About 20 to 50 percent of energy-saving benefits
TOP GIN-Air Compressor Energy Saving
4.Analysis of Energy-saving Module
  1. Saving 30 to 70 percent of power charges, which means that the investment amount might return within a year
  2. Energy-saving module ensures the life of the internal machinery and electrical components without changing the original work conditions of the air compressor.
  3. Energy-saving module enables a compressor to stay in a unload and halt mode for 60 to 70 percent of a cycle (a cycle of a compressor means that the system pressure rises to the set maximum pressure of the system and then decreases to the set minimum pressure of the system). It extends the life of an air compressor.
  4. Having 53 kinds of protection mechanisms for over-current, overload, overvoltage, phase failure and others.
  5. Adopting fully automatic control which needs no guards and readjustment.
  6. Having two types of switchable mechanisms, variable and commercial power, which may clarify the abnormal phenomena and solve the customers’ problems immediately.
[About TOP GIN] [TOP GIN Milestones] [Injection Molding Machine] [Chiller] [Pump] [Ceramic]
[Ventilation system] [Others]

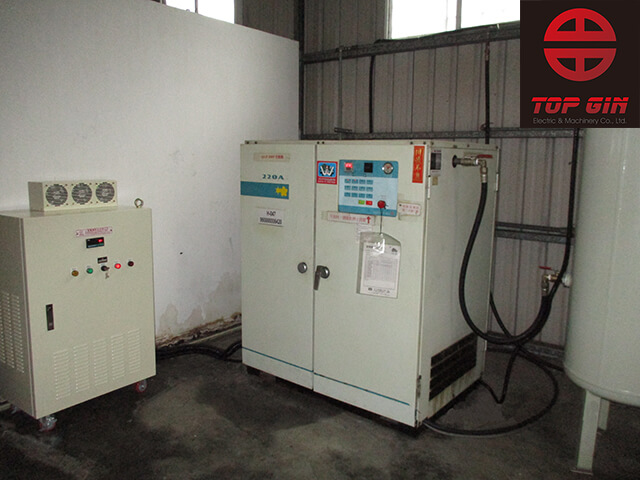

  • China Motor Corporation / Energy-saving of air-compressor / Energy-saving rate:34.5%

China Motor Corporation / Energy-saving of air-compressor

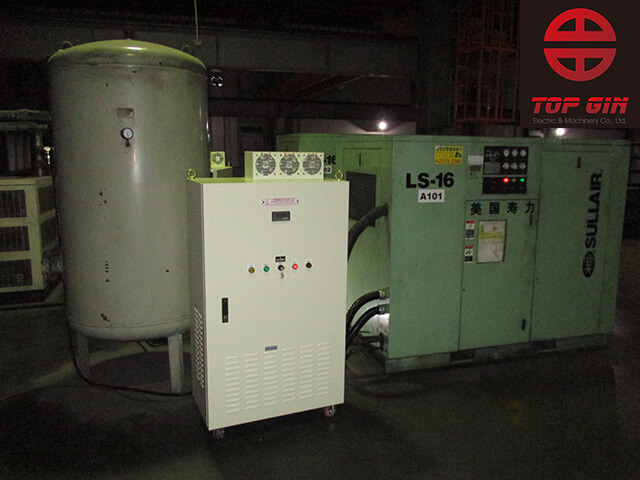

  • King Can Industry / Energy-saving of air-compressor / Energy-saving rate:30%
King Can Industry / Energy-saving of air-compressor

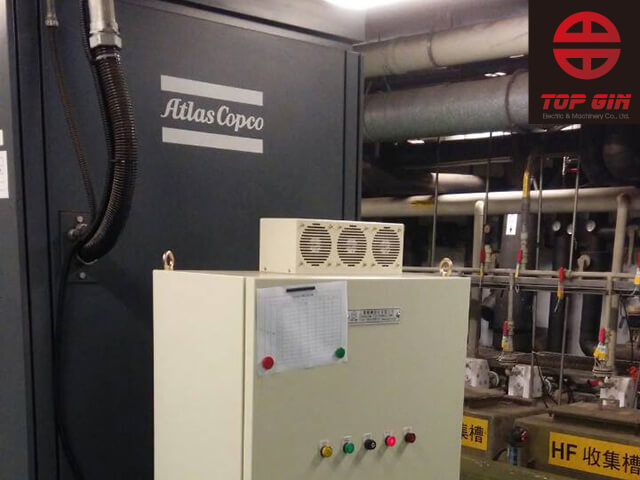

Energy saving of air compressor

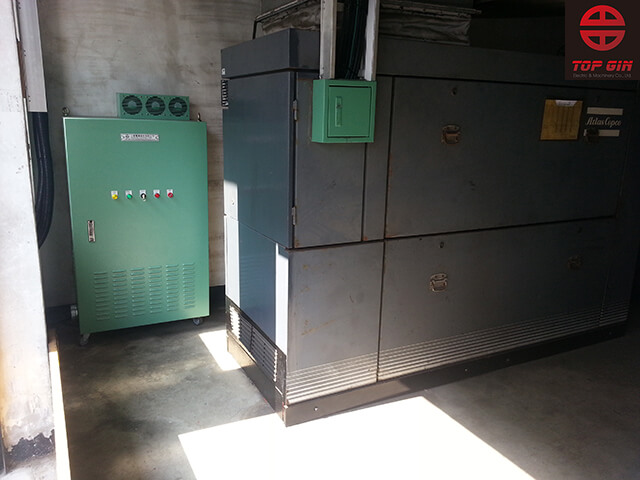

Energy-saving of air-compressor

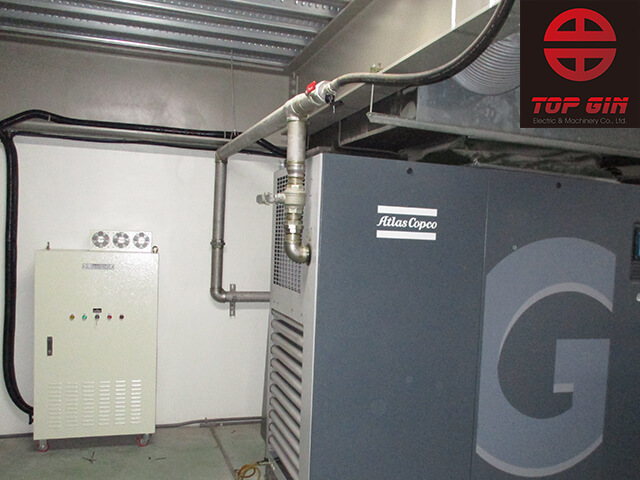

Energy-saving of air-compressor
